| Geometry |
|
| (A) Top tube length |
568mm |
| (B) Head tube length |
105mm |
| (C) Standover |
702mm |
| (D) Reach |
430mm |
| (E) Stack height |
513mm |
| (F) Bottom Bracket |
30mm |
| Geometry diagram |
Geometry
|
| Specs |
|
| Frame |
Medusa V2 6061 T6 |

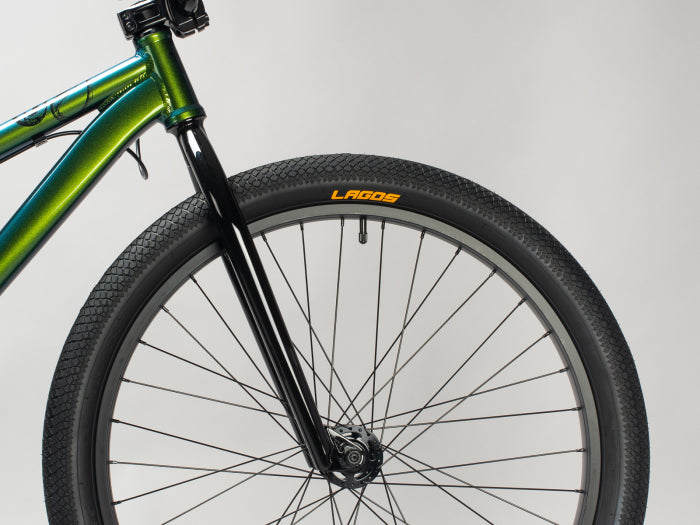

| Forks |
Medusa V2 Flanged Fork |

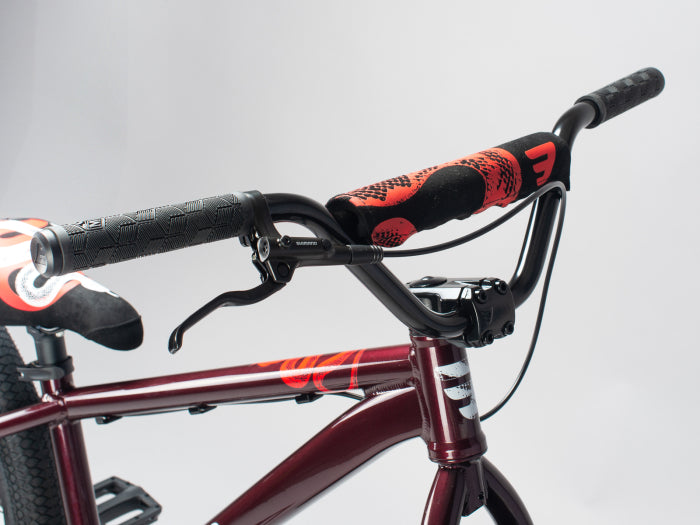

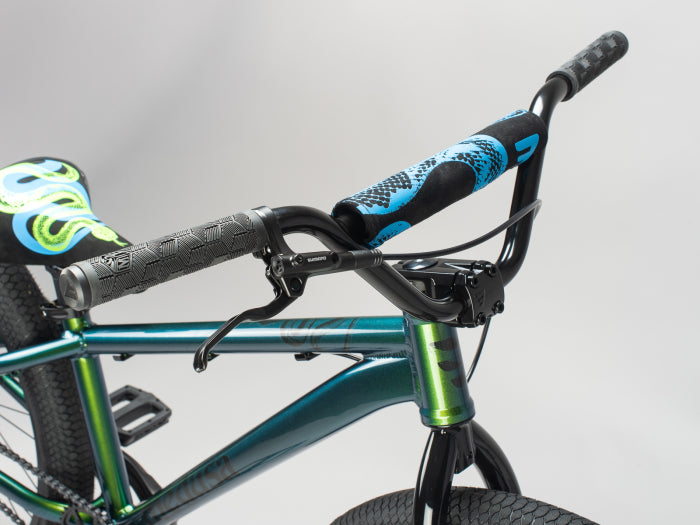

| Handlebars |
Medusa 2 Piece W-711mm H-140mm |
| Grips |
Mafiabikes Lucky 6 150mm |
| Headset |
1 1/8” Integrated - Sealed bearings |
| Stem |
Mafiabikes forged Frontload - 40mm Reach |
| Pedals |
9/16” Mafiabikes plastic |

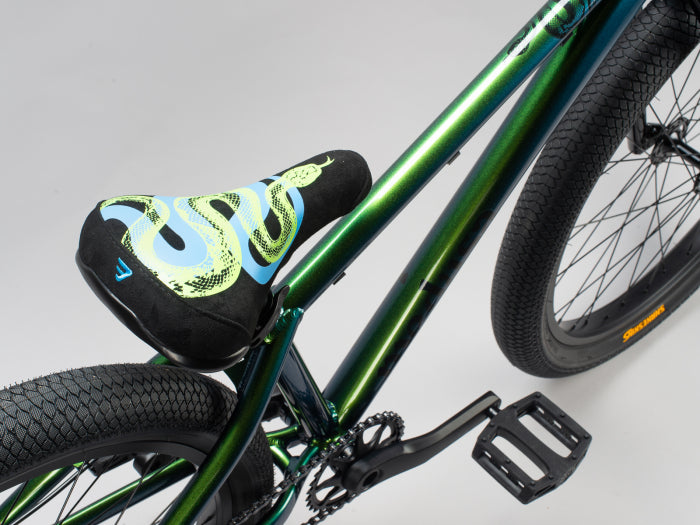

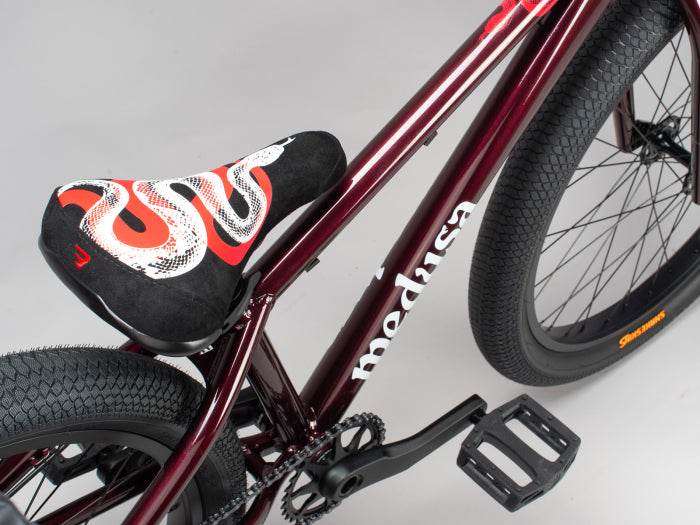

| Saddle |
Mafiabikes Wheelie seat - Railed |
| Seatpost |
Ø31.6mm micro adjust alloy |
| Seat Clamp |
Ø35mm External QR |

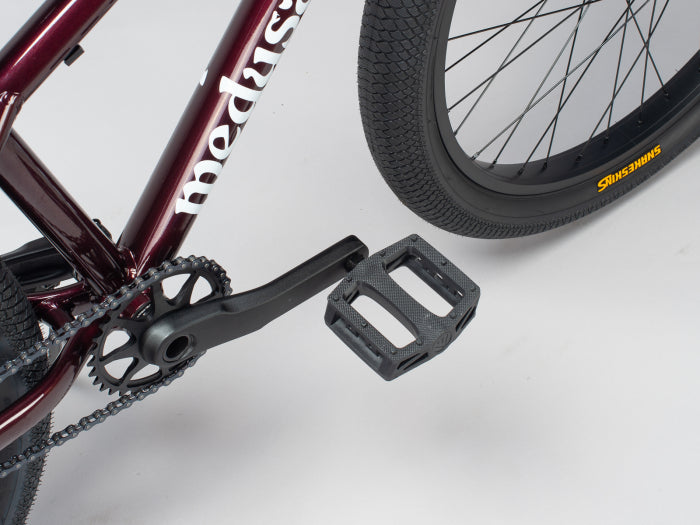

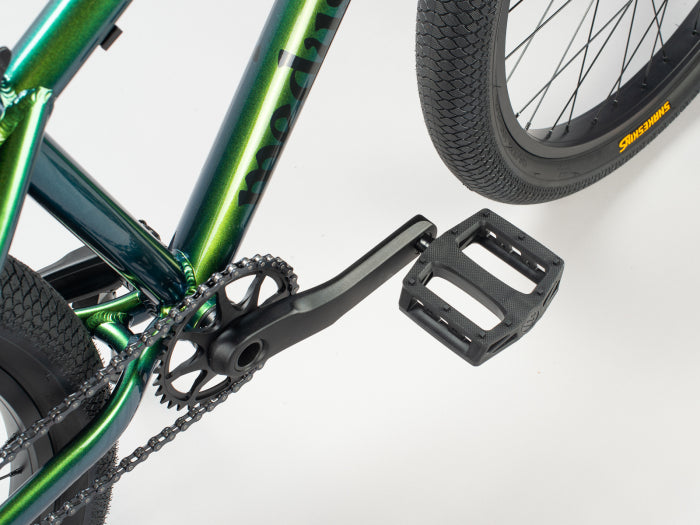

| Cranks |
Samox 165mm forged direct mount alloy crank. 24mm hollow spindle |
| Chainring/sprocket front |
32t Direct Mount CNC alloy single speed |
| Sprocket/cassette rear |
15t Freewheel M30 x 1mm |

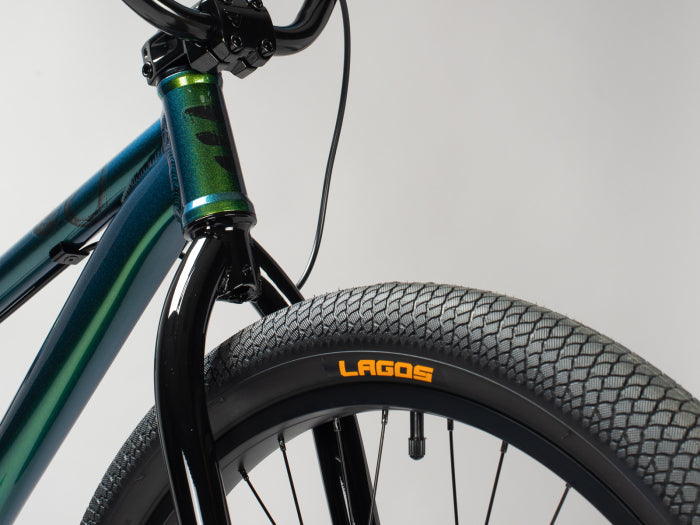

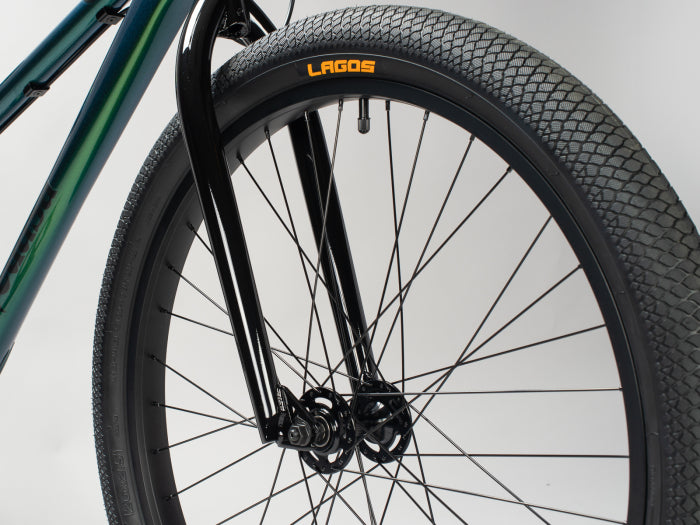

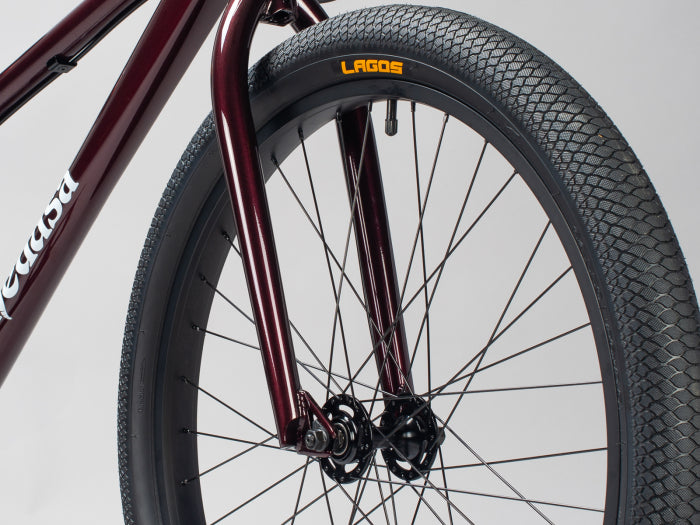

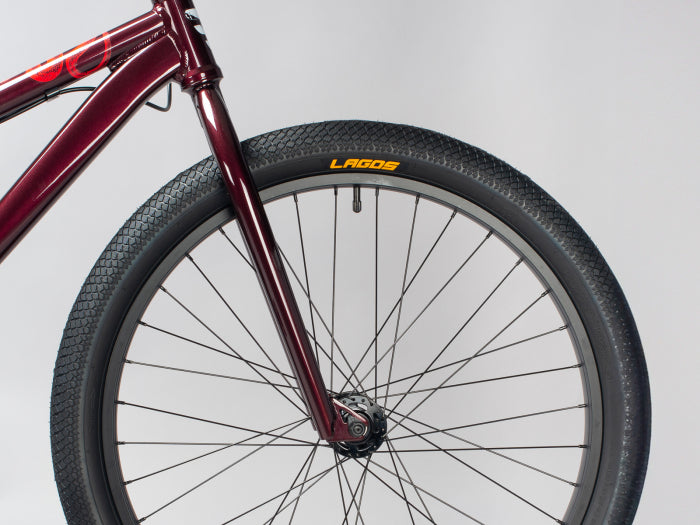

| Tyre Front |
Lagos Snakeskin "S" Super Soft Compound 26" x 2.5" |

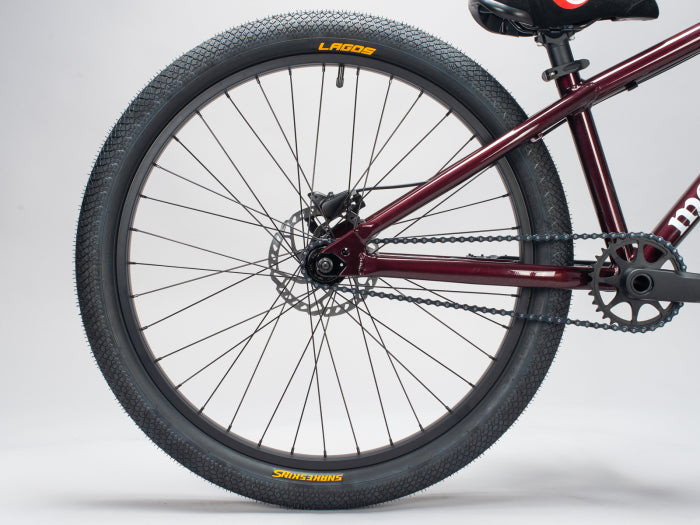

| Tyre Rear |
Lagos Snakeskin "S" Super Soft Compound 26" x 2.5" |
| Front hub |
Alloy shell, Fully sealed bearings, 3/8" axle |
| Rear hub |
Alloy shell, 3/8" axle, Threaded Freewheel, Fully sealed bearings, Disc |
| Rim front |
26" Double wall alloy 36h |
| Rim rear |
26" Double wall alloy 36h |
| Brake Front |
Side pull cable brake (supplied in roadkit) |

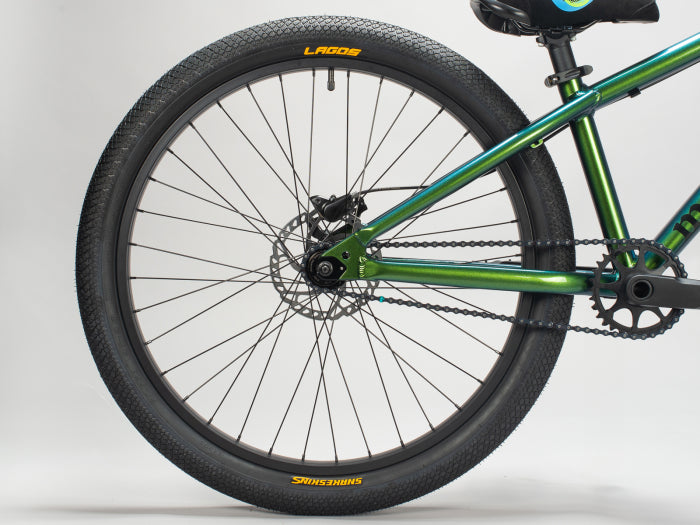

| Brake Rear |
Shimano MT200 - hydraulic disc brake 160mm rotor |
| Tech |
|
| BB type |
73mm ISO Thread |
| Headset type |
1 1/8” integrated |
| Rear axle/hub spacing |
3/8" x 135mm axle, disc mount |
| Max tyre width rear |
66mm / 2.6" |
| Seatpost/seatclamp |
Ø31.6mm post, 35mm seatclamp |
| Front axle/hub spacing |
3/8" x 100mm axle |
| Max tyre width front |
66mm / 2.6" |
| Frame construction and details |
6061 T6 Aluminum, IS rear brake tab, heavy duty hydroformed downtube and chainstays, peg mount integrated dropouts, interchangable geared to single speed dropout inserts |
| Road kit |
Included |
